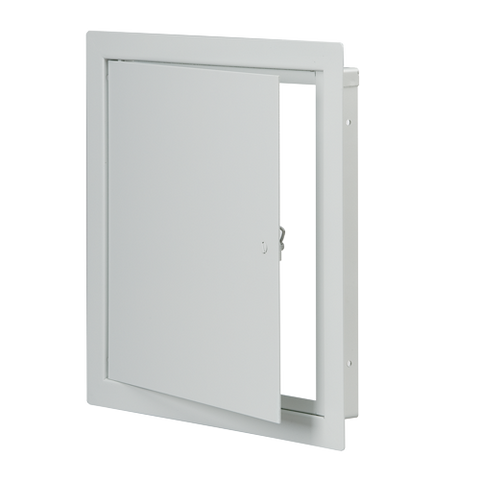

30x36 - B-NT Non-Rated All Purpose Access Panel
Click to enlarge.

30x36 - B-NT Non-Rated All Purpose Access Panel

Downloads:


Download the B-NT Series Architectural Cut Sheet

Description:


Babcock-Davis BN-Series: BNT non-rated, flush access doors provide access through openings in vertical or horizontal surfaces and have a minimal sight line for a concealed appearance.

Specifications:


Door:
14-gauge cold rolled steel
Frame:
16-gauge cold rolled steel
BNT - 1" flange for all surfaces
Hinge:
BNT - Concealed spring pin hinge
(On sizes up to & including 24"x36", larger sizes and all stainless steel panels have continuous piano hinge)
Latch:
Screwdriver cam latch (Standard)
Finish:
Paintable powder coat
Rough opening is door size + 1/4".
Flush, non-removable continuous piano hinges are standard on all stainless steel panels and those exceeding 24" wide and/or 36" hinge dimension.
