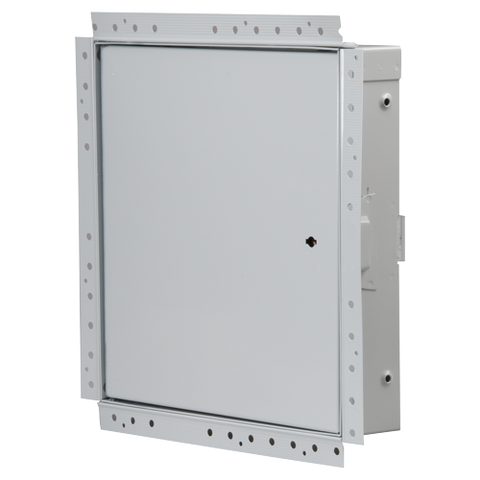

24x24 - B-UW Uninsulated Fire Rated Access Panel with Drywall Bead Flange
Click to enlarge.

24x24 - B-UW Uninsulated Fire Rated Access Panel with Drywall Bead Flange

Downloads:


Download the B-UW Series Architectural Cut Sheet

Description:


Babcock-Davis BU-Series: B-UW fire-rated, uninsulated access doors provide access through openings in fire rated vertical surfaces and have a minimal sight line for a concealed appearance. UL Listed "B" label for 1-1/2 hours in vertical surfaces (maximum temperature rise to 250F in 30 minutes). B-UW fire rated access doors are manufactured with a tape in bead flange for a concealed appearance in vertical drywall surfaces, leaving only the door exposed.

Specifications:


Door:
14-gauge cold rolled steel
Frame:
16-gauge cold rolled steel
22-gauge galvanized drywall corner bead
Hinge:
Concealed Pin Hinge
Latch:
Knurled knob/key operated latch bolt (Standard)
Finish:
Paintable powder coat
Insulation:
None
Rough opening is door size + 1/4".
